Collet Wrench

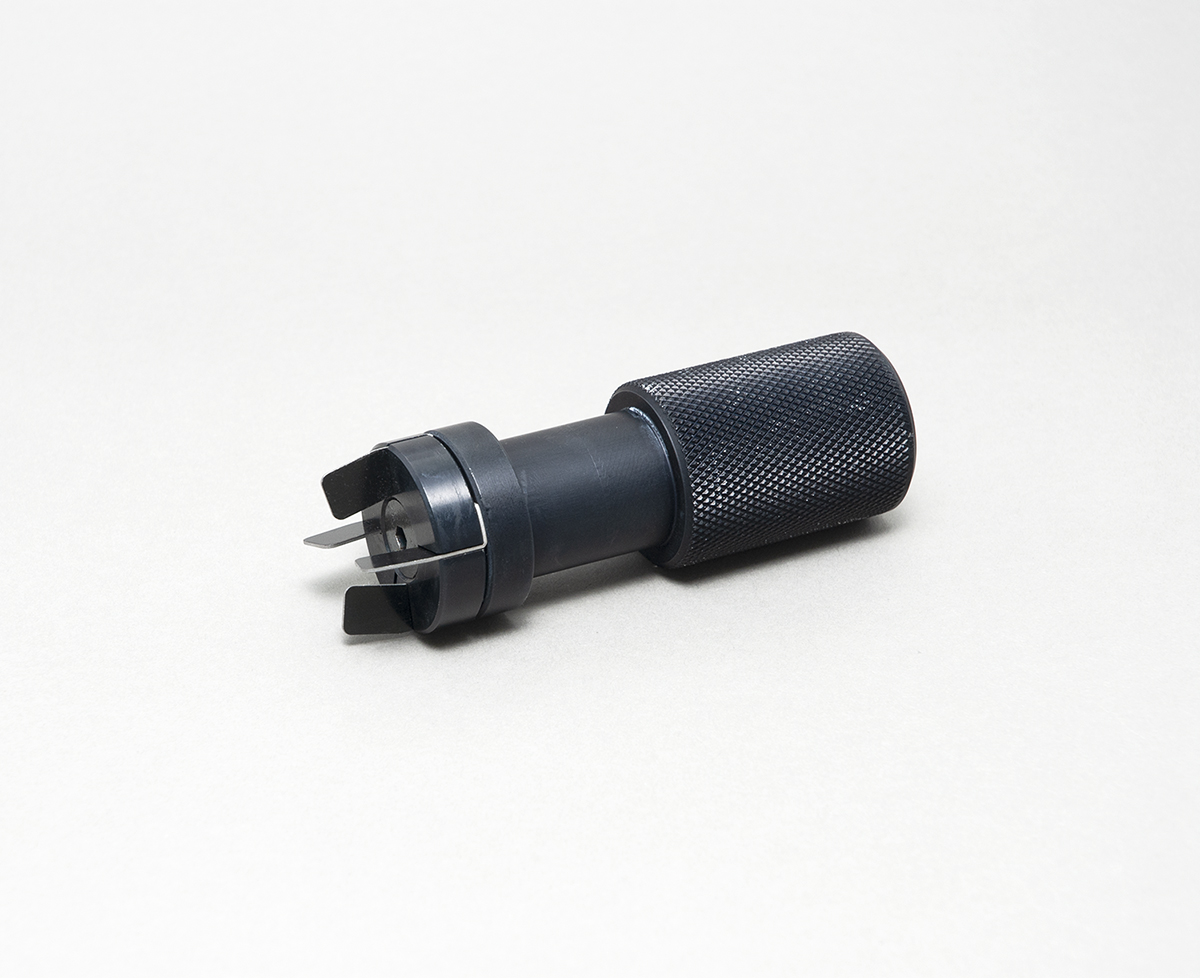

Internal Collet Wrench

For use on internal or external collet, this collet wrench is constructed from the highest quality materials. Next, the tools are crafted by our trained partners to exacting quality standards. This wrench is designed for 3 slot collets. However, they can also be used for a 4 slot collet depending on your work holding need. Please verify at the time of order entry which wrench is needed. There is also a fixture locking nut adjustment pin on the bottom of the wrench to create more flexibility. Zagar collet wrenches are excellent when space is limited and adjustments are needed. Feel free to contact the Zagar Sales Team at 216 731 0500 or email us sales@zagarinc.com to order today!

https://www.youtube.com/channel/UCLme4uPzZ9w2N_VdWFxoQ7Q for Zagar You Tube Channel

https://www.youtube.com/watch?v=PZxuy2Y5LTs for collet information

https://www.zagar.com/collets for main collet page

Collet Wrench

Specifications

Refer to the chart below to specify the particular collet wrench need.

Collet type

3c

5c

16c

22c

part number

707-890-3029

707-890-178

707-890-278

707-890-310

size

3.82length of toolX.75long for teethX1.50″ wide at base

3.82length of toolX1.40long for teethX1.50″ wide at base

3.82length of toolX 1.40long for teethX1.50″ wide at base

4.30length of toolX1.60long for teethX1.90″ wide at base

part number for teeth

707-890-3029

707-890-178-1

707-890-278-1

707-890-310-1
